Chevy bellhousing

Post by trucks1948 »

Does anyone have a big block chevy bellhousing bolt pattern?I need to cut out a spacer.Thank you
badassr1
2 Star Member
2 Star Member
Posts: 52
Joined: Thu Apr 07, 2016 6:16 pm

Re: Chevy bellhousing

Post by badassr1 »

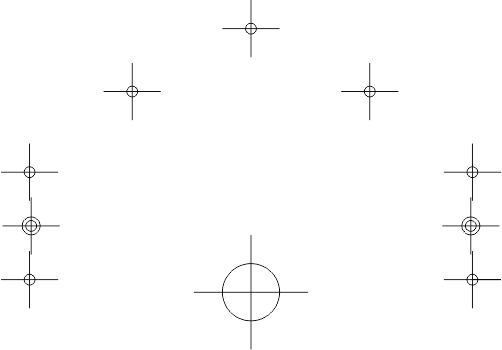

you bet

chevy-bellhousing-bolt-pattern.dxf

You currently do not have access to download this file.
To gain download access for DXF, SVG & other files Click Here

tjenus
2.5 Star Elite Contributing Member
2.5 Star Elite Contributing Member
Posts: 183
Joined: Mon Jun 06, 2011 11:14 am
Location: Kelso

Re: Chevy bellhousing

Post by tjenus »

Be good for a mid engine plate, thanks KH
5x10 Flow Waterjet
User avatar
steel 35
3.5 Star Member
3.5 Star Member
Posts: 634
Joined: Sun Jan 11, 2015 11:12 am
Location: N of Cali.

Re: Chevy bellhousing

Post by steel 35 »

Or an engine stand who needs anything else :D



Thanks
PPL HDG 4X8
Hyp 65 duramax's
C&CNC 620-5 Ethernet
Inkscape, Solid Edge, Sheetcam, Autocad 2K
Corel X7 Student NO DXF!
EasyScriber
User avatar
trucks1948
3 Star Member
3 Star Member
Posts: 440
Joined: Sat Jun 13, 2009 10:00 am
Location: Friendship,Wi

Re: Chevy bellhousing

Post by trucks1948 »

Thanks appreciate you sharing it.
gene portable welding
1.5 Star Member
1.5 Star Member
Posts: 30
Joined: Fri Jun 26, 2015 6:31 pm

Re: Chevy bellhousing

Post by gene portable welding »

thanks
thermal dyn 152
4 x 8 eagle plasma table
400 amp portable welder
250 amp Lincoln stick
miller cp300 w/ S-52d
miller cp300 w/S54a setup for alum
13 x 60 south bend lathe
emco mill
Amer bender
http://www.facebook.com/gene'sweldingandfabrication :)
Old Iron
3.5 Star Member
3.5 Star Member
Posts: 681
Joined: Wed Nov 26, 2014 5:12 pm

Re: Chevy bellhousing

Post by Old Iron »

Thank you for sharing this file with us!!!!!!!!!!
User avatar
Peechy
3 Star Elite Contributing Member
3 Star Elite Contributing Member
Posts: 337
Joined: Tue Nov 11, 2014 9:12 pm
Contact:

Re: Chevy bellhousing

Post by Peechy »

That's awesome !
8-)
No Class
2 Star Member
2 Star Member
Posts: 60
Joined: Thu Jan 09, 2014 9:33 pm

Re: Chevy bellhousing

Post by No Class »

This may be a stupid question but would this be the same for a small block chev? I had someone ask me a while ago for one.

Thanks
radicalrescue
3 Star Member
3 Star Member
Posts: 376
Joined: Thu May 28, 2015 8:02 am
Location: Merritt island fl.

Re: Chevy bellhousing

Post by radicalrescue »

No Class wrote:This may be a stupid question but would this be the same for a small block chev? I had someone ask me a while ago for one.

Thanks
yeep they r the same
User avatar
little blue choo
4 Star Member
4 Star Member
Posts: 1460
Joined: Mon Mar 02, 2015 10:38 pm
Location: Cherryville NC
Contact:

Re: Chevy bellhousing

Post by little blue choo »

Hey No Class, take notes, this bolt pattern will also fit.
ALL chevy V8's
GM 4300 Vortec V6
Chevy inline 6- post 1962
Chevy 153 inline 4 cyl.
6.2 & 6.5 Detroit Diesels
Durmax V8 diesel
Generation 3 V8's
and a few jeeps that used the modified Chrysler 904 (iron Mike) trans
You never know when someone will ask for something odd that you have and don't realize it.
Rick
Rick
Arclight 9600 4x8 table
Hypertherm PM65
Acc. Plate Marker, 4 inch Pipe Cutter, Wood Router package
Quincy Q54 compressor 2 stage, 5hp, 60 gal
Refrigerated air dryer & 4 stage filtration system
Software Mach 3, Sheetcam, Solid Edge 2D, Inkscape
User avatar
trucks1948
3 Star Member
3 Star Member
Posts: 440
Joined: Sat Jun 13, 2009 10:00 am
Location: Friendship,Wi

Re: Chevy bellhousing

Post by trucks1948 »

Good to know thanks
HomeMade Fabrication
1/2 Star Member
1/2 Star Member
Posts: 4
Joined: Tue Feb 09, 2021 12:38 pm

Re: Chevy bellhousing

Post by HomeMade Fabrication »

has anyone tried to use this or have a better one? I have cut this several times and it will not line up to and sbc blocks.

Thanks
adbuch
6 Star Elite Contributing Member
6 Star Elite Contributing Member
Posts: 8598
Joined: Thu Sep 21, 2017 5:22 pm
Location: Tucson, Arizona
Contact:

Re: Chevy bellhousing

Post by adbuch »

HomeMade Fabrication wrote: Fri Jan 14, 2022 9:33 pm has anyone tried to use this or have a better one? I have cut this several times and it will not line up to and sbc blocks.

Thanks
Which holes don't line up? Personally I would drill the holes (not plasma cut) and only cut the outer perimeter of the adapter plate.
David
bryantar74
1 Star Member
1 Star Member
Posts: 19
Joined: Wed Dec 12, 2018 11:37 pm

Re: Chevy bellhousing

Post by bryantar74 »

here is what i came up with. try it. i drilled the holes out one size bit size bigger than 3/8
SBC Mid Plate4.dxf

Bellhousing Dimensions Corrected 1 001.jpg

You currently do not have access to download this file.
To gain download access for DXF, SVG & other files Click Here

adbuch
6 Star Elite Contributing Member
6 Star Elite Contributing Member
Posts: 8598
Joined: Thu Sep 21, 2017 5:22 pm
Location: Tucson, Arizona
Contact:

Re: Chevy bellhousing

Post by adbuch »

bryantar74 wrote: Sun Jan 16, 2022 10:04 am here is what i came up with. try it. i drilled the holes out one size bit size bigger than 3/8
:Like :Like :Like
Captain89
1/2 Star Member
1/2 Star Member
Posts: 1
Joined: Thu Mar 16, 2023 11:08 am

Re: Chevy bellhousing

Post by Captain89 »

bryantar74 just confirming this corrected plate above. Im about to cut out a mid plate for my LS
bryantar74
1 Star Member
1 Star Member
Posts: 19
Joined: Wed Dec 12, 2018 11:37 pm

Re: Chevy bellhousing

Post by bryantar74 »

just now seeing this. it worked for a SBC 350 to power glide im not 100% sure on an ls but i think they use the same bellhousing pattern as the older small blocks.
big496
2 Star Member
2 Star Member
Posts: 62
Joined: Sat Apr 30, 2022 6:25 pm

Re: Chevy bellhousing

Post by big496 »

Bolt patterns are the same. The LSX uses a center bolt at the 12 o'clock position in place of the top passenger side bolt.
adbuch
6 Star Elite Contributing Member
6 Star Elite Contributing Member
Posts: 8598
Joined: Thu Sep 21, 2017 5:22 pm
Location: Tucson, Arizona
Contact:

Re: Chevy bellhousing

Post by adbuch »

big496 wrote: Fri Mar 17, 2023 11:45 pm Bolt patterns are the same. The LSX uses a center bolt at the 12 o'clock position in place of the top passenger side bolt.
Thanks for that confirmation! Good to know for the future.

David
DJC
2 Star Elite Contributing Member
2 Star Elite Contributing Member
Posts: 61
Joined: Mon Dec 11, 2017 11:25 am

Re: Chevy bellhousing

Post by DJC »

Does anyone have a drawing for the plate to adapt a SBC to the BOP transmission??
big496
2 Star Member
2 Star Member
Posts: 62
Joined: Sat Apr 30, 2022 6:25 pm

Re: Chevy bellhousing

Post by big496 »

I pulled an engine and tranny last week out of a C10. It had a bop 350 mated to it. I kept the adapter plate so I can TRY to draw or send dimensions unless someone beats me to it.
J-SIG
3 Star Elite Contributing Member
3 Star Elite Contributing Member
Posts: 440
Joined: Sat Nov 11, 2017 8:57 am
Location: Wisconsin

Re: Chevy bellhousing

Post by J-SIG »

big496 wrote: Wed Mar 29, 2023 6:59 pm I pulled an engine and tranny last week out of a C10. It had a bop 350 mated to it. I kept the adapter plate so I can TRY to draw or send dimensions unless someone beats me to it.
Here's a link to the different bolt patterns http://tech.oldsgmail.com/trans_bp.php# ... ed%20here)
(No dimensions) the dowel pin and bottom 2 bolts are the same on the Chevy & BOP, the last pic in the link show a "universal" housing you may be able to scan and size to Chevy and double check your dimensions too! I junked a couple Buick trans about 3 years ago to melt the aluminum down in my homemade blast furnace to cast some pulleys, pry bar handles, and misc pcs to use on the Lathe & Mill! Thought I had 1 left, but just have Chevy!

Jeff
Jeff S.
J-SIG Manufacturing
adbuch
6 Star Elite Contributing Member
6 Star Elite Contributing Member
Posts: 8598
Joined: Thu Sep 21, 2017 5:22 pm
Location: Tucson, Arizona
Contact:

Re: Chevy bellhousing

Post by adbuch »

Nice share Jeff! This is great information.
David
DJC
2 Star Elite Contributing Member
2 Star Elite Contributing Member
Posts: 61
Joined: Mon Dec 11, 2017 11:25 am

Re: Chevy bellhousing

Post by DJC »

big496 wrote: Wed Mar 29, 2023 6:59 pm I pulled an engine and tranny last week out of a C10. It had a bop 350 mated to it. I kept the adapter plate so I can TRY to draw or send dimensions unless someone beats me to it.
Would love it if you could make that happen!! Any interest in selling the adaptor if not?
