2004 Duramax Desiel Bumper

Post by Hillbilly Stills »

Looking for a file for front and or rear bumper for 2004 Duramax chevy...
thanks in advance.
TruCut 5x10
Victor Plasma
Thermal Dynamics
Sheet Cam
Rhino3d
Bobcad
Ironman
2 Star Member
2 Star Member
Posts: 82
Joined: Fri Jul 24, 2009 12:01 am
Location: Warburg, Alberta

Re: 2004 Duramax Desiel

Post by Ironman »

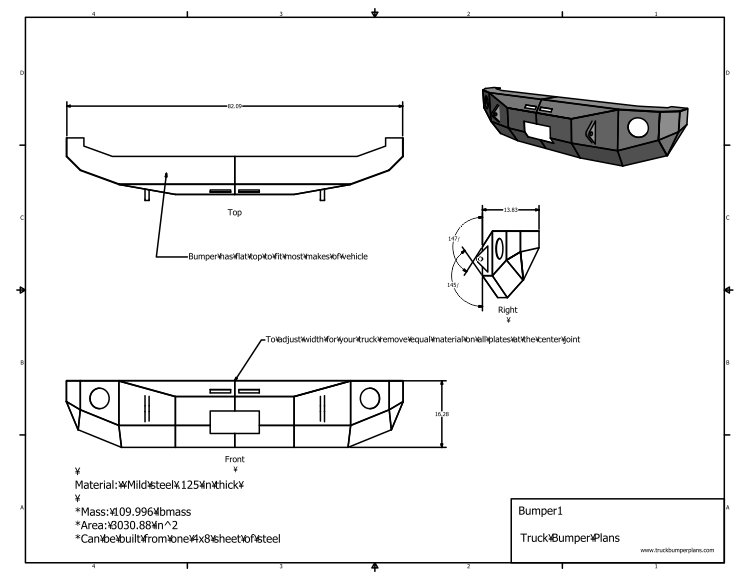

Here's a front bumper in PDF format. Not too hard to change to a dxf.

Bumper1.pdf

You currently do not have access to download this file.
To gain download access for DXF, SVG & other files Click Here

Hillbilly Stills
2 Star Member
2 Star Member
Posts: 52
Joined: Mon Jun 06, 2016 2:58 pm

Re: 2004 Duramax Desiel

Post by Hillbilly Stills »

thanks so much.. It may take me a while. I am really new to this. When I complete I will post pics and share the DXF file.
TruCut 5x10
Victor Plasma
Thermal Dynamics
Sheet Cam
Rhino3d
Bobcad
Ironman
2 Star Member
2 Star Member
Posts: 82
Joined: Fri Jul 24, 2009 12:01 am
Location: Warburg, Alberta

Re: 2004 Duramax Desiel

Post by Ironman »

Do a search for free or online PDF to DXF converters, or try
nirklars.wordpress.com/2015/04/22/pdf-to-dwg-using-free-open-source-inkscape/

You can put all drawing into a dxf this way and work with it in your cutting software.
Bodyofametallurgist
1 Star Member
1 Star Member
Posts: 22
Joined: Mon Sep 14, 2015 4:46 pm

Re: 2004 Duramax Desiel

Post by Bodyofametallurgist »

thanks
Hillbilly Stills
2 Star Member
2 Star Member
Posts: 52
Joined: Mon Jun 06, 2016 2:58 pm

Re: 2004 Duramax Desiel

Post by Hillbilly Stills »

When I try to convert it. I only get the first page. I can't seem to get the others.
TruCut 5x10
Victor Plasma
Thermal Dynamics
Sheet Cam
Rhino3d
Bobcad
User avatar
68Percy
2 Star Member
2 Star Member
Posts: 88
Joined: Thu Jun 25, 2015 7:20 pm
Location: Loranger, Louisiana

Re: 2004 Duramax Desiel

Post by 68Percy »

Awesome info. I've done rear bumpers from scratch and there's alot of head scratching on what the end result will look like on the truck. I like the way this one is designed. For anyone that wants to tackle a bumper project: This pdf just gives you the outter "skin" of the bumper. You'll still need to measure and design vehicle specific mounting brackets and winch mounts for whatever you're working on. It is still a great start though.
Austin Lanier
Dirt Road Metal Works, LLC
"Too much of a business to be a hobby, too much of a hobby to be a business"
User avatar
68Percy
2 Star Member
2 Star Member
Posts: 88
Joined: Thu Jun 25, 2015 7:20 pm
Location: Loranger, Louisiana

Re: 2004 Duramax Desiel

Post by 68Percy »

I drew each piece according to the dimensions in the pdf file in Autocad. So here is the dxf if anyone wants to play around with it.
Front Bumper Skin.dxf

You currently do not have access to download this file.
To gain download access for DXF, SVG & other files Click Here

Austin Lanier
Dirt Road Metal Works, LLC
"Too much of a business to be a hobby, too much of a hobby to be a business"
4dycefabrication
1 Star Member
1 Star Member
Posts: 17
Joined: Sat Feb 20, 2016 12:58 pm

Re: 2004 Duramax Desiel

Post by 4dycefabrication »

I have a set of fab four brackets that were for a 06 dmax. I never used them and sold the truck, but bought the brackets to build a bumper for, if anyone interested in brackets and hardware message me.
Kitch940
1 Star Member
1 Star Member
Posts: 14
Joined: Sun Feb 14, 2016 11:38 am

Re: 2004 Duramax Desiel

Post by Kitch940 »

Awesome guys! I have an 04 dmax and would love to fab this up for it! Thanks!
Bradley
2 Star Member
2 Star Member
Posts: 88
Joined: Mon Jul 14, 2014 9:37 pm

Re: 2004 Duramax Desiel

Post by Bradley »

This is awesome, thank you.
kbenz
3 Star Elite Contributing Member
3 Star Elite Contributing Member
Posts: 465
Joined: Sun Oct 31, 2010 1:26 pm
Location: Kannapolis,NC
Contact:

Re: 2004 Duramax Desiel

Post by kbenz »

Thanks for the share. question. What are the slots for?
CandCNC
Mach3
Sheetcam
Draftsight
Hypertherm 65 machine torch
Millermatic 210
Passport plus
Spoolmate 150
Miller Bobcat 225
http://benzweldingandfabrication.com/
https://www.facebook.com/pages/Benz-Wel ... 468?ref=hl
nalin400m
2 Star Member
2 Star Member
Posts: 73
Joined: Wed Apr 13, 2011 2:07 pm
Location: Evansville, IN
Contact:

Re: 2004 Duramax Desiel

Post by nalin400m »

anyone build one of these?
Nalin Manufacturing, LLC
Hypertherm Powermax 85
Bulltear Starlab 4'x8'
User avatar
Unvevo
2 Star Elite Contributing Member
2 Star Elite Contributing Member
Posts: 85
Joined: Wed Jun 29, 2016 4:42 pm

Re: 2004 Duramax Desiel

Post by Unvevo »

Awesome! I need to do this
After Hours Fabrications
1/2 Star Member
1/2 Star Member
Posts: 7
Joined: Tue Jan 10, 2017 2:29 pm

Re: 2004 Duramax Desiel

Post by After Hours Fabrications »

Awesome job on laying out the details, have been wanting to build a bumper for my truck for a while but haven't taken time to get started...maybe this will get me going! Thanks for the share of the PDF and the DXF files
AFTER HOURS FABRICATIONS
ARC LIGHT PRO 5'X10' TABLE
HYPERMAX 85 PLASMA CUTTER
S13yeti
1/2 Star Member
1/2 Star Member
Posts: 1
Joined: Sat Oct 07, 2017 1:51 pm

Re: 2004 Duramax Desiel Bumper

Post by S13yeti »

Has anyone built one of these yet? Would love to see the outcome
User avatar
68Percy
2 Star Member
2 Star Member
Posts: 88
Joined: Thu Jun 25, 2015 7:20 pm
Location: Loranger, Louisiana

Re: 2004 Duramax Desiel Bumper

Post by 68Percy »

S13yeti wrote:Has anyone built one of these yet? Would love to see the outcome
I made built the front bumper for my 2000 Z71 using the plans from this thread. I did some HEFTY dimensional changes to the original plans in order to get it somewhat close to fitting the curve of the front of the truck. I drew it all in cad, measured the grill line and modeled that in cad, then started pulling lines and changing dimensions. By the time I was done, I probably would've been better off starting from scratch. I built the rear bumper from scratch and it took WAAAAY less cad time. Rear bumpers are easy though because you don't have to fight with matching the curve and grill lines. Eventually i'll build another front bumper for my truck because there's things that bug me and I really want to change and it'll be easier to start fresh with dimensions that I know are correct.
Austin Lanier
Dirt Road Metal Works, LLC
"Too much of a business to be a hobby, too much of a hobby to be a business"
User avatar
68Percy
2 Star Member
2 Star Member
Posts: 88
Joined: Thu Jun 25, 2015 7:20 pm
Location: Loranger, Louisiana

Re: 2004 Duramax Desiel Bumper

Post by 68Percy »

Forgot about the pic...

Austin Lanier
Dirt Road Metal Works, LLC
"Too much of a business to be a hobby, too much of a hobby to be a business"
User avatar
68Percy
2 Star Member
2 Star Member
Posts: 88
Joined: Thu Jun 25, 2015 7:20 pm
Location: Loranger, Louisiana

Re: 2004 Duramax Desiel Bumper

Post by 68Percy »

This is a more recent pic. I had both bumpers sprayed whenever I got the bedliner in the bed done.

Austin Lanier
Dirt Road Metal Works, LLC
"Too much of a business to be a hobby, too much of a hobby to be a business"
Billy wesson
1 Star Member
1 Star Member
Posts: 10
Joined: Thu Nov 23, 2017 11:09 am

Re: 2004 Duramax Desiel Bumper

Post by Billy wesson »

thanks I have the 06 now all I need is the rear bumper
ggeh
3 Star Elite Contributing Member
3 Star Elite Contributing Member
Posts: 319
Joined: Thu Mar 31, 2016 2:51 pm

Re: 2004 Duramax Desiel Bumper

Post by ggeh »

I have a 2005 it will look awesome on. Very nice, I'm sure it will save me lots of $$$$$$. Thanks for sharing. Gary
biggator850
2 Star Member
2 Star Member
Posts: 72
Joined: Fri Dec 26, 2014 9:52 am
Location: Mexico Beach, FL

Re: 2004 Duramax Desiel Bumper

Post by biggator850 »

This is an EXCELLENT thread!!!! Does anyone have advice on the best way to build a front and rear bumper for a 2016 Duramax? I know the rear has been changed to the step bumpers. From the factory it is all colapseable stamped BS that crumples on impact. My wife "Taco'd" the rear bumper on the only oak tree in a two acre field, and the impact didn't even blow the horn!

Thinking through how to build this, I am questioning the best steel thickness, and any problems ya'll have had with the piece drawing from the heat of welding???? We do a good bit of our fabrication with aluminum, but a bumper is something I am not sure would work with AL. I am worried about cracking and the low modulus of elasticity especially using 6061-T6. Just not sure it would hold up under structural stress that is put on a bumper..... (Especially with a MANIAC drivier!)
kbenz
3 Star Elite Contributing Member
3 Star Elite Contributing Member
Posts: 465
Joined: Sun Oct 31, 2010 1:26 pm
Location: Kannapolis,NC
Contact:

Re: 2004 Duramax Desiel Bumper

Post by kbenz »

did y'all use any braces inside it?
CandCNC
Mach3
Sheetcam
Draftsight
Hypertherm 65 machine torch
Millermatic 210
Passport plus
Spoolmate 150
Miller Bobcat 225
http://benzweldingandfabrication.com/
https://www.facebook.com/pages/Benz-Wel ... 468?ref=hl
Surfstyle
1/2 Star Member
1/2 Star Member
Posts: 1
Joined: Tue Jul 21, 2020 11:24 am

Re: 2004 Duramax Desiel Bumper

Post by Surfstyle »

I'm curious does this fir 2001 hd
The_Shwang
1/2 Star Member
1/2 Star Member
Posts: 1
Joined: Wed Jan 24, 2024 8:47 am

Re: 2004 Duramax Desiel Bumper

Post by The_Shwang »

I have an 03 cat eye duramax. Will this work on mine?
